Two-Stage Recycling Machine

Product Details

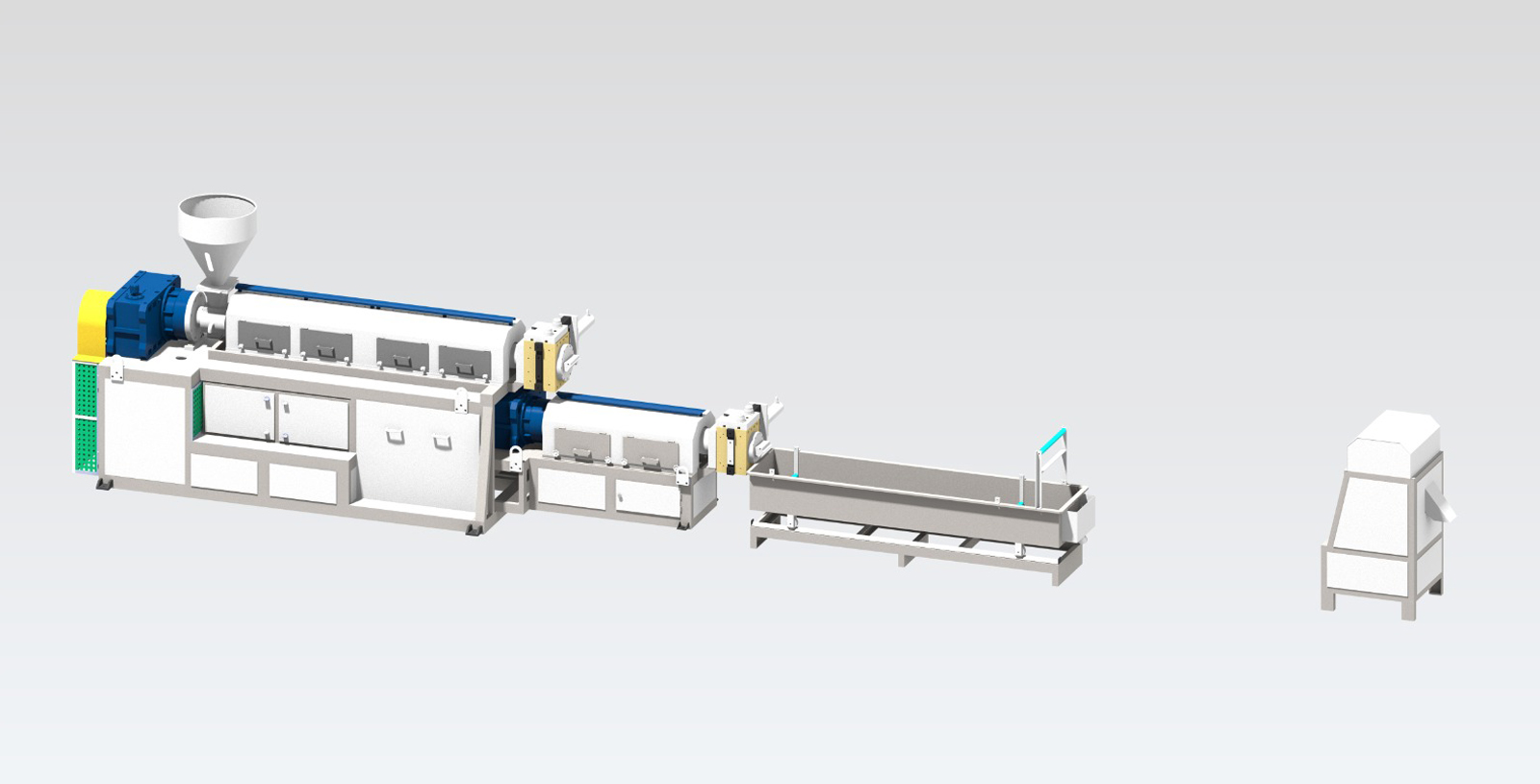

Cygnet Machinery have Specialized ” plastic mother baby machine” likely refers to a specific type of extrusion line or equipment used for processing  (PP) (HDPE) plastic. The “mother baby” configuration in extrusion refers to a system where two extruders work together, with one serving as the “mother” extruder and the other as the “baby” extruder. The mother extruder is the primary extruder responsible for melting and processing the PP plastic material. It has a larger capacity and higher output compared to the baby extruder and The baby extruder is smaller and operates in sync with the mother extruder. It receives a portion of the melt from the mother extruder and is often used for co-extrusion applications, where multiple layers or colors are combined to form a composite product.

The plastic reprocess mother baby machine is a valuable asset in plastic recycling facilities and plays a crucial role in transforming plastic waste into reusable raw materials. By reprocessing plastic waste, this setup contributes to waste reduction, resource conservation, and environmental sustainability. It enables the circular economy for plastics, promoting the reuse of plastic materials and reducing the reliance on virgin plastics. After processing through the “mother baby” extrusion system, the recycled plastic material is typically pelletized to form plastic granules. These pellets can be used in various manufacturing processes to produce new plastic products.

Technical Specification

Model CM-RP-90- 75 CM-RP-110- 90 CM-RP-120-110
Capacity (kg/hr) 130-140 180-200 230-250
Mother Extruder Screw Diameter(mm) 90 110 120
L/D 32:1 32:1 32:1
Gear Box (Premium/Zeal/Excel) GHE-180 GHE-200 GHE-225
Motor Power (ABB/ Siemens/SGL/BBL) 50 HP 60 HP 75 HP
A/C Drive (Siemens/Mitsubishi/delta/ABB) 50 HP 60 HP 75 HP
Hydraulic Screen Changer 120 MM 200 MM 250 MM
Baby Extruder Screw Diameter(mm) 75 90 110
L/D 13:1 13:1 13:1
Gear Box (Premium/Zeal/Excel) GHE-160 GHE-180 GHE-200
Motor Power (ABB/ Siemens/SGL/BBL) 40 HP 30 HP 20 HP
A/C Drive (Siemens/Mitsubishi/delta/ABB) 20 HP 30 HP 40 HP
Hydraulic Screen Changer 100 MM 120 MM 150 MM
No Of Hole In Die 12-13 15-18 20-22
Optional Equipment Automatic Masterbatch Doser
Automatic Filler Doser
Total Connected Load (kw) 72 KW 103 KW 135 KW
Total Consuming Load (kw) 44 KW 62 KW 81 KW
